When a new material is developed, how do you know if it can withstand real-world stress? The answer often begins with a tensile test. This type of testing stretches a prepared specimen until it reaches its breaking point, revealing how strong, flexible, or durable the material truly is. But the accuracy of those results depends on more than just pulling the sample apart. From the way a specimen is cut and polished, to how it is conditioned before the test, and finally to the equipment that records the data, every step has its importance.
In this article, we will look at the different types of equipment used in tensile testing. Many think first about the tester itself, but the process actually involves a chain of specialized tools: preparation machines, surface finishing systems, environmental chambers, universal testing machines, extensometers, grips, and even the software that turns numbers into meaningful results. By the end, you will see how each piece of equipment fits into the bigger picture of reliable tensile testing.
What is Tensile Testing?
Tensile testing, often called a tension test, is one of the most widely used methods for evaluating material performance. In its simplest form, a specimen is placed in the grips of a universal testing machine (UTM) and pulled apart until it fractures. During this process, the machine records direct values such as ultimate tensile strength, breaking stress, elongation at break, and reduction in cross-sectional area. From these results, additional properties are calculated, including the Young’s modulus, yield strength, and strain characteristics.
This type of testing is considered a fundamental tool because it applies to nearly every class of engineering material. Metals, plastics, composites, and elastomers are all tested in this way to understand how they will perform under load. For example, steel samples are often prepared in a dog-bone shape as required by ASTM E8/E8M and ISO 6892-1. Plastics are tested under ASTM D638 or ISO 527, while rubber follows ASTM D412 or ISO 37. These international standards define specimen geometry and testing procedures, so results remain consistent and comparable across laboratories.
The applications are broad. In automotive manufacturing, tensile tests on steel, aluminum, and reinforced polymers confirm that structural parts can handle service stresses. Aerospace engineers rely on tensile data from high-strength alloys and composite laminates to validate safety margins. In packaging and consumer goods, films and plastics are tested for stretch and tear resistance. Even medical devices, from sutures to implant materials, undergo tensile testing to guarantee performance in critical environments.
Types of Equipment Used in Tensile Testing
Tensile testing is rarely just a single step. Behind every result lies a sequence of operations: preparing the specimen, refining its surface, conditioning it under controlled environments, applying the test load, and finally analyzing the data. Each stage calls for dedicated equipment, and the right choice depends on the material being tested, the shape of the specimen, and the properties that need to be measured. A steel bar, a plastic film, and a composite laminate will not be tested with the exact same tools. In the following sections, we will look at the main categories of equipment that make tensile testing possible, from the machines that cut and polish samples to the universal testing machines and extensometers that deliver the final numbers.
Sample Preparation Equipment
Think a perfect tensile test starts at the universal testing machine? Not quite. It starts at the saw table and the CNC station. Geometry, edge quality, and surface finish decide where the specimen fails and how your stress-strain curve looks, so preparation must match ASTM and ISO specimen definitions from the beginning.
Cutting Saws (band, abrasive cut-off, precision saws)
Cutting is the first step in preparing a tensile specimen. Band saws are the most common option for creating blanks from plates, bars, or sheets. They are fast and flexible but leave burrs and a rougher edge that requires extra finishing. Abrasive cut-off saws, on the other hand, deliver cleaner and squarer cuts, though they are slower and require regular wheel maintenance. For delicate samples or thin coupons, precision wafering saws are used, offering minimal kerf and excellent dimensional control.
Key considerations include coolant use to prevent heat damage, the choice of blade or wheel based on material hardness, and leaving a machining allowance for final shaping. A poor cut at this stage can already predetermine premature specimen failure.
CNC Machining for Standardized Specimens
Once blanks are cut, CNC machining gives specimens their precise, standard-compliant shape. Milling is typically used for flat dog-bone specimens, while turning is required for round-bar samples. Accurate gauge width, smooth transitions at the shoulders, and concentricity are critical to meet ASTM E8/E8M, ISO 6892, ASTM D638, or ISO 527 requirements.
- Dog-bone milling (flat specimens): finishing passes with sharp end mills ensure parallel sides and radiused shoulders, preventing stress concentrations. Tolerances often fall within ±0.001–0.002 in (±0.025–0.05 mm).
- Round-bar turning (cylindrical specimens): careful alignment and fine surface finish (Ra ≤ 32 micro-inch / 0.8 µm) are essential for metals to reduce premature crack initiation.
CNC machining offers repeatability and batch efficiency but requires skilled setup, tooling discipline, and attention to tool wear. For low sample counts, setup time may outweigh the benefits, while high-throughput labs gain significant productivity.
Die Cutting and Punching
For films, textiles, sheets, and elastomers, die cutting is the fastest way to achieve consistent specimen geometry. Steel-rule or machined dies, pressed into the material, produce dog-bone shapes according to ASTM D638 or ISO 527 for plastics, and ASTM D412 or ISO 37 for rubber. These dies must remain sharp to avoid edge tearing, and wear can gradually alter specimen width, so periodic verification is needed.
This method excels in speed and consistency for thin materials but lacks the precision of CNC machining for metals or thicker composites. Still, it is indispensable in industries where large numbers of film or rubber specimens must be prepared daily.
Heat, Burrs, and Finish Control
Regardless of the cutting method, heat management and burr removal are critical. Excessive heat can alter the microstructure of metals or soften polymers, while burrs act as stress risers that trigger premature failure. A light grind or polish after cutting removes these defects and leaves the specimen ready for further finishing.
Dimensional Verification and Traceability
Every prepared specimen must be checked against dimensional tolerances defined in standards. Gauge length, width, and thickness are verified with calibrated tools, and surface finish in the gauge section is inspected. Common gauge lengths include 2 in (50 mm) for metals and 1–2 in (25–50 mm) for plastics. Each sample is marked outside the gauge section for traceability, and contaminants such as coolant residues are removed before conditioning.
Automation Levels
Labs can choose between manual, semi-automatic, and fully automated preparation workflows. Manual stations are economical and flexible for small runs. Semi-automatic setups combine programmable saws with CNC machining for moderate throughput. Fully automated cells with loaders and barcode tracking support high-volume testing with minimal operator intervention, improving repeatability and reducing human error.
In short, sample preparation sets the stage for a valid test. Correct geometry, clean edges, and a controlled surface finish help the specimen fail in the gauge section and yield reliable stress-strain data.
Polishing and Surface Finishing Equipment
Once specimens are cut and shaped, they rarely go directly to the testing machine. The machining process leaves behind tool marks, burrs, and even microcracks that can drastically influence results. That is why metallographic grinders and polishing systems are used to refine the surface. Equipped with abrasive wheels or diamond disks, these machines create a smooth, uniform finish across the gauge section of the specimen. Modern automatic polishing systems apply steady pressure and speed, which helps produce consistent results from sample to sample.
Why is polishing so critical? Even the smallest scratch can act as a stress concentrator. In tensile testing, that means a crack might initiate at the flaw instead of in the central gauge section, leading to an artificially low strength reading. Industry reports suggest that more than half of unexpected test failures can be traced back to poor surface preparation. A properly polished specimen, by contrast, breaks where it should, and the values for strength and ductility are repeatable and trustworthy.
To achieve the required finish, laboratories often use a sequence of abrasive papers, starting with coarser grades and moving step by step to finer ones. Final polishing with a suspension, such as alumina or diamond paste, produces a mirror-like surface on metals and ceramics. Automatic polishing systems are especially valuable for high-strength alloys or brittle materials, where uniform pressure and motion reduce the risk of introducing new defects.
Conditioning and Storage Equipment
Specimen’s mechanical response can change dramatically depending on temperature and humidity, so conditioning is a critical step. Environmental chambers allow laboratories to expose specimens to controlled conditions before and during a tensile test. These chambers can be programmed for subzero, ambient, or elevated temperatures, as well as specific humidity levels. For example, metals may be tested at cryogenic temperatures down to –112 °F (–80 °C), while polymers and composites might be conditioned at high humidity to simulate real-world service. In biomedical applications, chambers are often set at 98.6 °F (37 °C) to replicate body temperature. Advanced systems even integrate furnaces that reach more than 4000 °F (2200 °C), enabling tests on ceramics and high-temperature alloys.
Humidity control is especially important for polymers, textiles, and composites. A dry specimen can behave much more rigidly than one that has absorbed moisture. Without proper conditioning, two identical samples may yield very different stress-strain curves. By stabilizing materials before testing, environmental chambers help measured properties reflect expected performance in service conditions.
Storage is the other half of the equation. Once prepared, specimens must be protected from corrosion, dust, or moisture absorption. Laboratories typically use sealed containers with desiccants, controlled cabinets, or cold storage for longer retention. For specimens that have been heat-treated or conditioned, storage under stable temperature and humidity prevents unwanted changes before the test. Clear labeling and traceability are also essential, so that each sample can be matched to its preparation parameters and future results.
.webp)
Tensile Testing Machines (UTMs)
At the center of every tensile test is the universal testing machine, or UTM. This is the equipment that actually applies the force and records how a specimen responds until failure. No matter how well a sample is cut, polished, or conditioned, the UTM is where its true mechanical properties are revealed.
Electromechanical UTMs
Electromechanical systems use a motor-driven screw and crosshead to apply load. They are designed for precision and control, making them ideal for materials that do not require extreme force but demand accurate measurement. Plastics, composites, thin metals, textiles, and elastomers are often tested on electromechanical machines. Load capacities usually range from just a few pounds to around 220,000 lbf (1,000 kN). They excel at maintaining steady, low loading rates, which is essential for compliance with ASTM D638 for plastics or ISO 527 for polymers. Advantages include high accuracy, quiet operation, and the ability to run tests at very slow speeds. The limitation is maximum force: these machines are not suited for massive steel bars or large structural components.
Hydraulic UTMs
Hydraulic machines use fluid pressure to move powerful pistons that generate very high loads. They are the go-to option for metals, construction materials, and heavy-duty composites. Capacities often start at 110,000 lbf (500 kN) and can climb to 2,000,000 lbf (9 MN) or more. Standards like ASTM E8/E8M and ISO 6892 for metallic specimens are typically executed on hydraulic systems. They are robust and reliable for high-strength alloys but consume more energy, require regular hydraulic maintenance, and may not achieve the same fine load control as electromechanical systems at very low forces.
Core Components
Both electromechanical and hydraulic machines share common architecture:
- Load frame with upper and lower crossheads to hold grips or fixtures.
- Load cell to measure the applied force with high accuracy.
- Crosshead drive (screw or piston) to apply movement and load.
- Control system and software to regulate test speed, collect data, and generate reports.
Optional accessories like high-temperature furnaces or cryogenic chambers expand testing conditions. With extensometers or optical strain systems attached, UTMs capture complete stress-strain curves that describe yield strength, tensile strength, elongation, and modulus.
Specialized Testing
UTMs are not limited to monotonic pull-to-break tests. With the right configurations, they can perform high-temperature tensile testing, creep tests that last hundreds of hours, and fatigue tests where specimens undergo millions of loading cycles. This makes them essential not only for quality control but also for research and certification in aerospace, automotive, energy, and biomedical industries.
Balancing Accuracy and Power
Electromechanical systems are praised for their precision, while hydraulic systems dominate in maximum load capacity. Choosing between them depends on the material and the test standard being followed. A lab testing thin polymer films would not benefit from a massive hydraulic frame, while a steel mill testing heavy bars cannot rely on a lightweight electromechanical machine.
Extensometers and Strain Measurement Systems
Measuring force is only half of the tensile test. To understand how a material stretches and when it yields, you also need to measure strain with precision. That is where extensometers and strain measurement systems come in.
Contact Extensometers
Clip-on extensometers are the most widely used solution, especially for metals and rigid materials. They are manually attached to the specimen gauge section before the test begins, and their arms follow the elongation directly. Inside, strain gauges or potentiometers translate that movement into accurate readings of strain. These devices can detect very small changes in length, often with accuracy classes of 0.5 or better. For materials with limited elongation—typically metals and stiff composites—the repeatability of contact extensometers provides reliable calculations of Young’s modulus, yield strength, and elongation at break.
Non-Contact Systems
When materials stretch far beyond a few percent, contact systems may interfere with the test or even fall off. In these cases, optical methods are preferred. Video extensometers, often based on digital image correlation (DIC), use high-resolution cameras to track the movement of natural surface patterns or applied markers on the specimen. Because they never touch the sample, they introduce no extra load and can capture strain across multiple axes. The measurement range is virtually unlimited, making them suitable for elastomers, plastics, films, and textiles that undergo large elongations. High-end systems achieve remarkable accuracy, ensuring that strain data remains consistent even in long or highly deformable specimens.
By combining contact and non-contact techniques, laboratories can adapt to the full spectrum of materials. Metals, composites, and ceramics benefit from the precision of clip-on systems, while polymers, rubbers, and films are best served by optical solutions.
.webp)
Accessories and Fixtures (Grips and Clamping Systems)
A universal testing machine is only as good as the way it holds the specimen. If the grips are not chosen correctly, even the best-calibrated load cell will not save the test from slipping, premature breaks, or uneven stress distribution. That is why grips and fixtures are often considered a critical part of any tensile setup.
Manual and Pneumatic Grips
The simplest option is the screw-driven vise or pneumatic grip. These are widely used because they can handle metals, plastics, and composites with relative ease. The jaws usually have serrated or coated surfaces to prevent slipping. Pneumatic versions apply uniform pressure across the specimen with compressed air, which makes them faster and more consistent than manual tightening. The challenge lies in setting the right clamping force: too little and the sample slips, too much and the surface gets damaged, leading to early failure outside the gauge section.
Wedge and Hydraulic Grips
When the loads climb higher, wedge and hydraulic grips step in. Wedge grips lock tighter as the tensile load increases, which makes them especially practical for metallic specimens tested under ASTM E8. Hydraulic grips, on the other hand, apply extremely high clamping forces through fluid pressure. These are used for very hard or large samples that would simply tear out of lighter grips. Regardless of the type, proper alignment is critical so that the load path remains centered and bending stresses are avoided.
Specialized Fixtures
Not all specimens are simple dog-bones or round bars. Films, textiles, wires, ropes, and thin laminates often require customized fixtures. Webbing grips, rope grips, and capstan fixtures are examples of solutions designed to hold delicate or flexible specimens without crushing them. By wrapping the sample around rollers or soft interfaces, these fixtures provide enough friction to carry the load while protecting the material from damage.
Data Analysis and Control Systems
The final stage of tensile testing is not the break of the specimen but the way the data is captured, processed, and reported. Modern universal testing machines rely on dedicated software platforms that turn raw force and displacement signals into meaningful results. These programs plot stress-strain curves in real time, calculate values such as 0.2% offset yield strength, ultimate tensile strength, and modulus of elasticity, and then generate reports in formats like PDF or Excel. Most platforms include libraries of preloaded test methods (ASTM, ISO, DIN and others), so operators can select the required standard and begin. With more than 600 predefined test profiles available in some systems, setup becomes faster and compliance with international procedures is easier to maintain.
Ease of use is another focus. Software interfaces often include step-by-step wizards that guide operators through machine setup, specimen details, and test execution. Once a test is complete, the program compiles all results into a clear, standardized report that includes numeric values, graphs, and any relevant compliance notes. This makes documentation seamless and reduces the risk of manual errors in data entry.
Automation is increasingly shaping data management in tensile testing. In many laboratories, robotic systems now load specimens and initiate tests, creating fully automated workflows capable of running continuously with minimal supervision. Such setups are particularly valuable for quality control environments where dozens or even hundreds of specimens must be processed daily.
Integration with broader quality systems is another critical feature. Test software often connects directly to LIMS or enterprise databases, so tensile results stay stored, traceable and accessible across the organization. For accredited labs working under ISO/IEC 17025, this level of documentation is essential. Functions like calibration record storage, version control for test methods, and automated validation checks help maintain compliance and audit readiness.
All-Inclusive Solutions for Tensile Testing from TensileMill CNC
For many years, TensileMill CNC has been providing laboratories and production facilities with complete tensile testing solutions. Our equipment portfolio covers every step of the process: specimen preparation, polishing, universal testing systems, consumables, fixtures, and dedicated software. This means you can source everything you need for tensile testing in one place, with the confidence that every system integrates smoothly and complies with international standards. Below we present the key categories of equipment available.
Tensile Specimen Preparation Equipment
TensileMill CNC offers CNC solutions for both flat and round specimen preparation. Each system is engineered to deliver ASTM, ISO, DIN, and JIS standard-compliant results with maximum accuracy, ease of use, and efficiency.
The TensileMill CNC MINI – Compact Flat Tensile Test Sample Preparation Machine provides unmatched flexibility for flat specimen production. Despite its compact footprint, it features a larger table size, higher spindle power (2.2kW / 3hp water-cooled), and greater precision compared to earlier models. Operated by our user-friendly Carbon software with a 10" touchscreen, the MINI allows operators to quickly input dimensions from any major standard and produce repeatable, defect-free specimens. It is equally capable of handling soft alloys and hard materials such as Inconel.
The TensileTurn CNC – Classic Upgrade Round Specimen Preparation Machine is a state-of-the-art CNC lathe designed for high-precision round tensile samples. With the ability to process materials up to 45 mm thick and 55 HRC hardness, it easily handles steels, alloys, and high-strength metals. Featuring the intuitive TensileSoft™ 2.0 interface and a 15" controller, it allows operators of any skill level to prepare round, sub-size, threaded, and button-head specimens with industry-leading accuracy. Its triple clamping fixture supports up to three stacked specimens, maximizing throughput, while FANUC software enables advanced machining operations such as facing, turning, and threading.
Tensile Testing Equipment
Our universal testing systems include both servo-hydraulic and electromechanical machines, covering all force capacities and testing requirements.
The SHM Class A Servo Hydraulic Universal Testing System delivers capacities of 600kN and 1000kN (134,885 lbf to 224,809 lbf) with ±0.5% accuracy. Built with a durable four-column structure, it is suited for high-force applications across metals, construction materials, and composites. Equipped with hydraulic-operated tensile grips and multiple test zones, it supports tensile, compression, bending, and shearing tests. Its robust design supports long-term reliability with minimal maintenance.
The TM-EML Electromechanical UTM covers a wide range of capacities from 50kN to 600kN (11,200 lbf to 135,000 lbf). Offering high-speed, low-vibration operation and ±0.5% measurement accuracy, it is perfect for applications requiring precision at both low and mid-range loads. The electromechanical drive ensures excellent control for metals, composites, fasteners, and wood products.
Tensile Specimen Polishing Equipment Machines
For surface finishing, TensileMill CNC provides specialized polishing machines engineered to eliminate tool marks, burrs, and microcracks that can compromise test results. These systems apply controlled pressure and speed, ensuring smooth, repeatable surfaces across metals, composites, and ceramics.

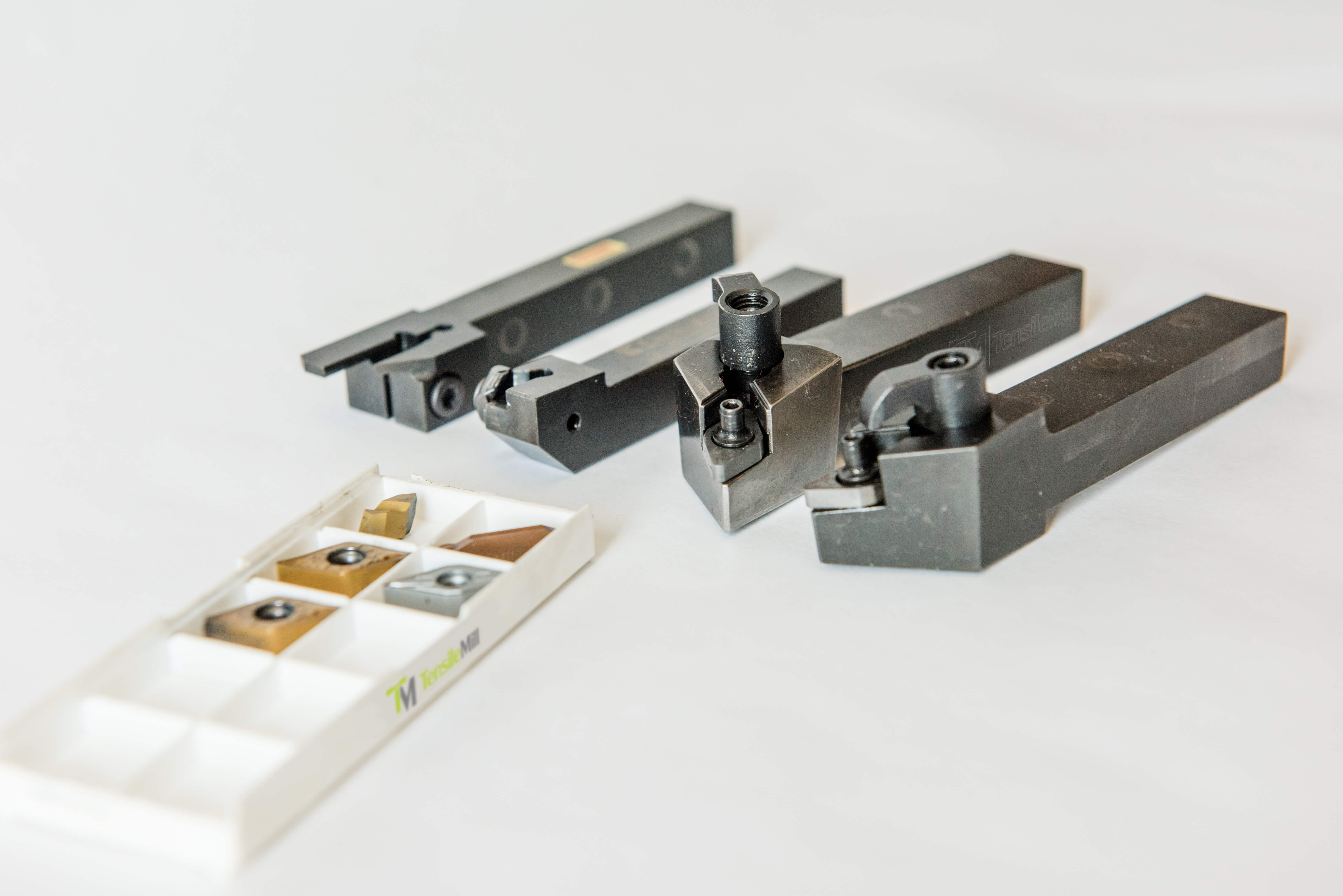

Consumables and Spare Parts
TensileMill CNC maintains a full catalog of consumables, fixtures, and spare parts to support continuous testing operations. Specialty end mills are available for both soft and hard materials, engineered for long tool life and consistent performance. Our clamping fixtures accommodate flat, round, and irregular specimens, with custom solutions provided on request. Inserts and tooling are offered for aluminum, hardened steels, and Inconel, ensuring reliable machining regardless of material hardness.
To minimize downtime, we also stock critical spare parts such as servo drives, spindle motors, control boards, and custom inserts. Most components are available for immediate delivery, and custom-manufactured parts can be supplied within contracted lead times.
Software Solutions
Every TensileMill CNC system comes with dedicated TensileSoft™ software to streamline setup, testing, and data analysis. Our platforms include preloaded libraries of international standards (ASTM, ISO, DIN, JIS, EN, BS) and intuitive interfaces that guide operators through every stage. Real-time stress-strain plotting, automatic calculation of tensile properties, and instant report generation are standard features. For specimen preparation machines, the software allows direct input of required dimensions, automatically configuring the milling or turning process to produce compliant specimens.
Reliability in Tensile Testing
Tensile testing is not a single action but a sequence of connected steps. From the first cut of the specimen to the way data is processed, each stage directly affects the outcome. If the specimen is shaped incorrectly, if the surface is rough, or if conditions are uncontrolled, the results may lose accuracy.
Studies show that many testing errors come from specimen preparation. To avoid this, laboratories use dedicated tools at every stage: CNC machines for shaping samples to standard dimensions, polishing systems to remove surface flaws, environmental chambers to set temperature and humidity, and universal testing machines with extensometers and precise data systems. Following international standards such as ASTM, ISO, and DIN helps confirm that stress-strain results reflect the actual behavior of the material.
When all parts of the process are handled with the right equipment, the outcome is dependable. Strength, ductility, and modulus values become meaningful numbers that engineers can rely on. In practice, this makes tensile testing not just a laboratory routine but a foundation for safe designs, consistent production, and credible quality control across industries.
If you have any questions about selecting the right equipment for tensile testing, please contact us directly or through request online quote - we will be happy to assist you in every way we can.
